Palisade fence is a popular fence in European in the past, however, in recent years, great changes have taken place in personal aesthetic value, so the palisade fence become popular among our life. The palisade fence consists of many components, each of them is indispensable. We can provide you a complete palisade panel, we can also provide fittings separately.

Palisade fence: One pointed, triple pointed, rounded, rounded & notched and square top.

Palisade gate: Singular leaf or double leaf, swing or sliding gate, cantilever gate.

Steel palisade fence: Made of low carbon steel, mild steel, hot or cold rolled steel.

Galvanized palisade fence: Palisade fence or palisade gate can be finished with hot-dipped or electric galvanized.

Palisade pales: The pales can be W section, D section and angle section.

Palisade post: The palisade posts have square type and RSJ beam type.

Palisade rail: Angle type with slots to fix.

Palisade fittings: Connecting parts include fishplates, post clamps, bolts and nuts.

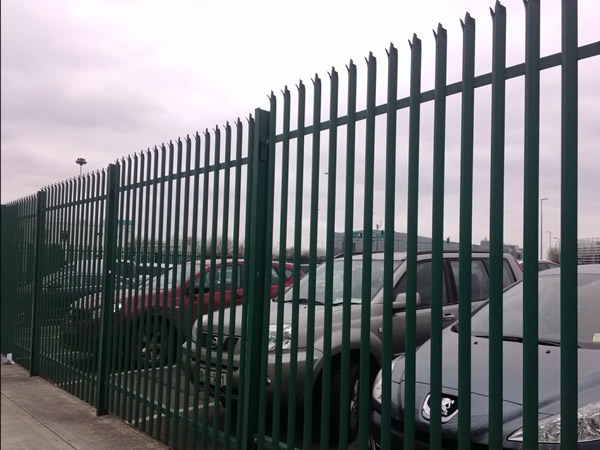

The palisade fence with many advantages can be used in various places. For example, in private residence, the palisade fence is used to prevent intruders and also serves as a decoration facilities; in garage, the palisade fence serves as the gate of the access; in agriculture, the palisade fence serves as a barrier to protect the plant, it also used as the support for the plant. The palisade pales, horizontal rails, post clamps and palisade fittings can also be provided separately to replace the old one.

PALISADE FENCE SPECIFICATIONS

   • Post: 2400 High fence – 100×45 TFB
   • Post: 3000 High Fence – 150 UB 14.0
   • Rail: 50x50x6 EA
   • Fish Plate: 40×8 140 long
   • Corner Fish Plate: 40×8 215 long W Profile
   • ‘W’ Pale: 71x21x3 W Profile
   • Rail Fixings: M12x30 Cuphead Bolt and Shear Nut
   • Pale Fixings: M8x25 T Bolt and Shear Nut or – Stainless Steel Huck Pin and Collar
   • Mid Bay Support: M12x500 Threaded Rod and 2 x Nuts

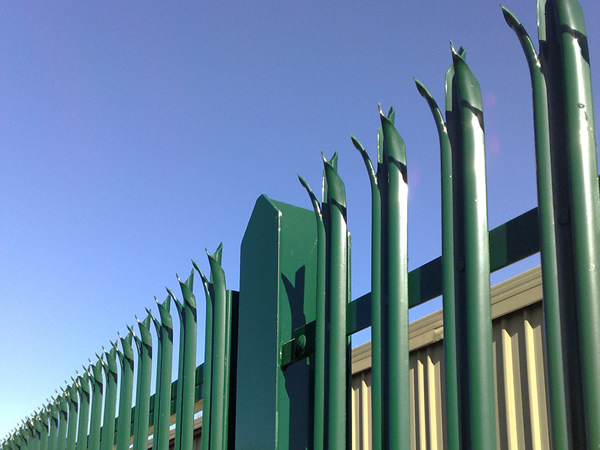

Pale Head

Pale head can be the most destructive section of the palisade pales, the head type of the palisade pale decide the safety index of the fence. We produce many kinds of types, you can choose the most suitable one according to your need.

Package:

We also provide separated palisade fence pales, you can choose metal pallet, wooden pallet or other packing ways.
